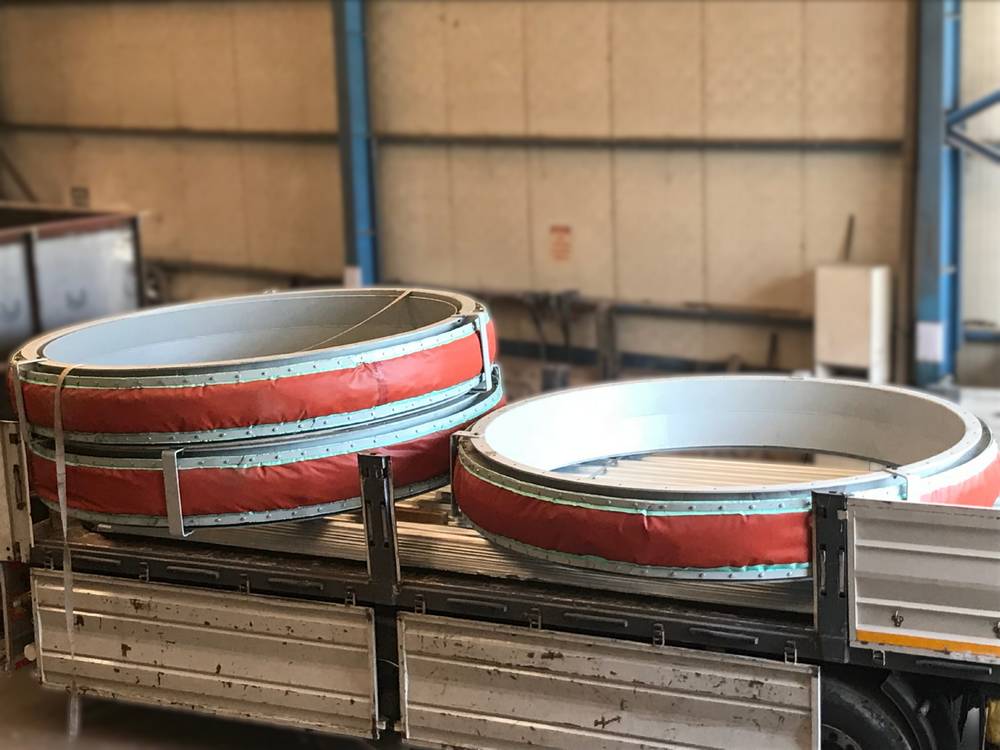

Features of Vanox Fabric Expansion Joints
Multi-layer design: Enhances flexibility and movement absorption.
Compensation in multiple directions: Can absorb axial, lateral, and angular movements simultaneously.
Excellent form stability: Maintains shape under pressure and temperature variations.
Customizable units: Available as fabric-only or preassembled units tailored to specific working conditions.
High chemical and heat resistance: Suitable for corrosive environments and high temperature operations up to 800°C with insulation or refractory lining.
Low reaction forces: Reduces stress on connected equipment and duct systems.
Durable against abrasion and flutter: Ensures long-term reliability in industrial applications.

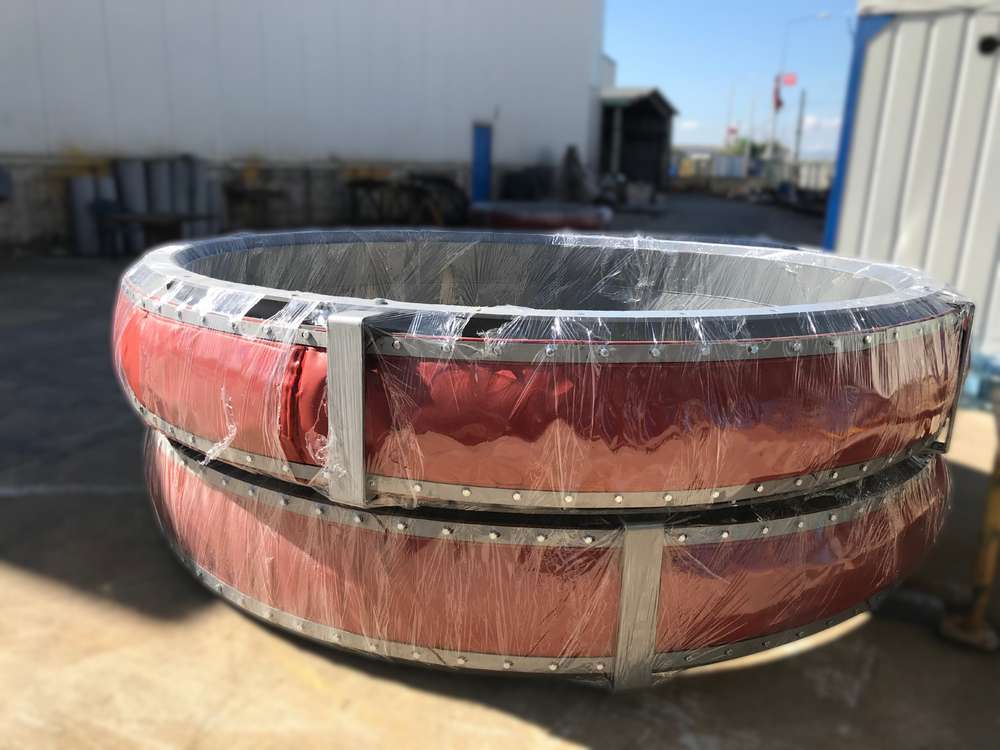

Construction and Materials
Vanox fabric expansion joints are manufactured using premium technical fabrics and coatings to withstand harsh industrial environments. Typical materials include:
- Insulation layers: Glass fabric, ceramic, silicate fabrics
- Sealing layers: Elastomers, PTFE, high-alloy steel sheets
- Base fabrics: Polyester, aramid, glass fabrics, silicate
- Coatings: Neoprene, EPDM, CSM, silicone, PTFE
These layers provide superior resistance to high temperatures, chemical attack, and mechanical stress, ensuring that the joints function reliably even in demanding applications.
Operating Parameters
- Temperature range: -35 °C to +575 °C (-31 °F to +1,067 °F), with optional insulation for higher temperatures up to 800 °C
- Pressure: -0.2 bar to 0.2 bar (-2.9 PSI to 2.9 PSI)
- Maximum movements: Axial up to 160 mm (6.5”), Lateral up to 80 mm (3”)
These specifications allow Vanox fabric expansion joints to safely compensate for thermal growth, mechanical movements, and misalignments in piping and duct systems while maintaining optimal performance.

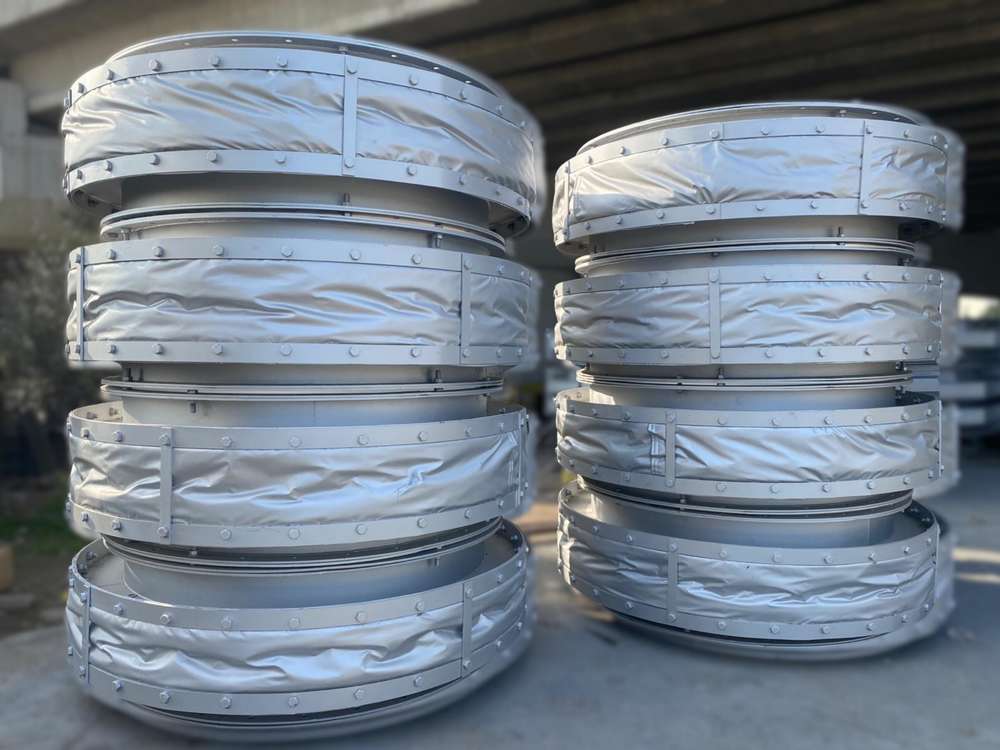

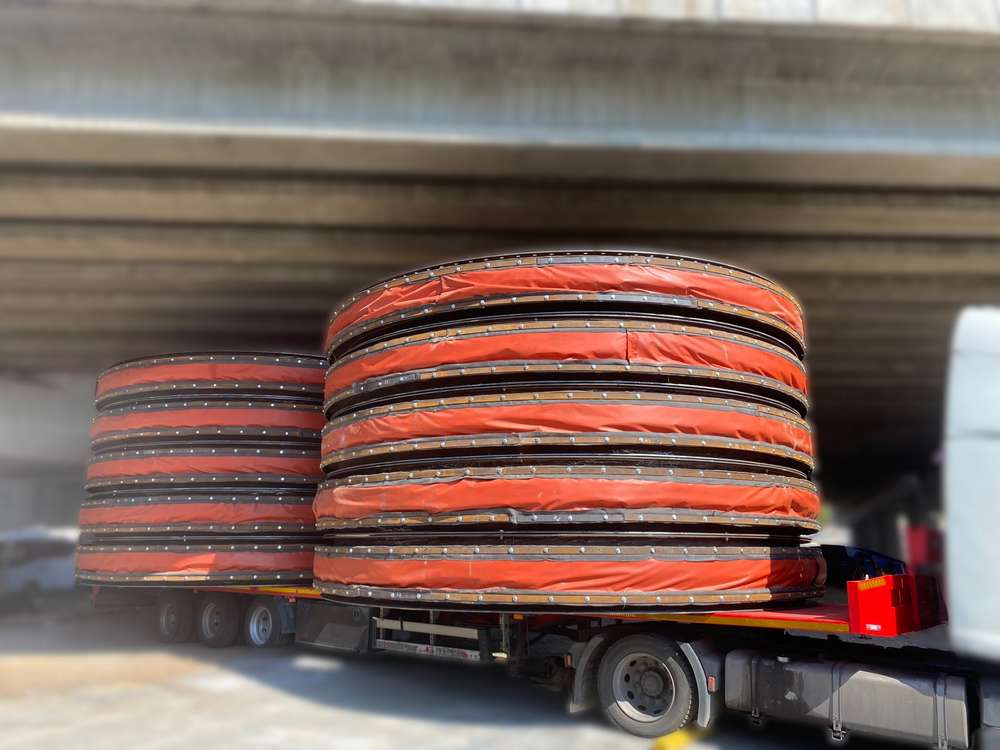

Design and Configurations
Vanox fabric expansion joints are available in a variety of shapes and sizes to suit different installation requirements:
- Circular, oval, rectangular, or custom geometries
- Open or closed designs

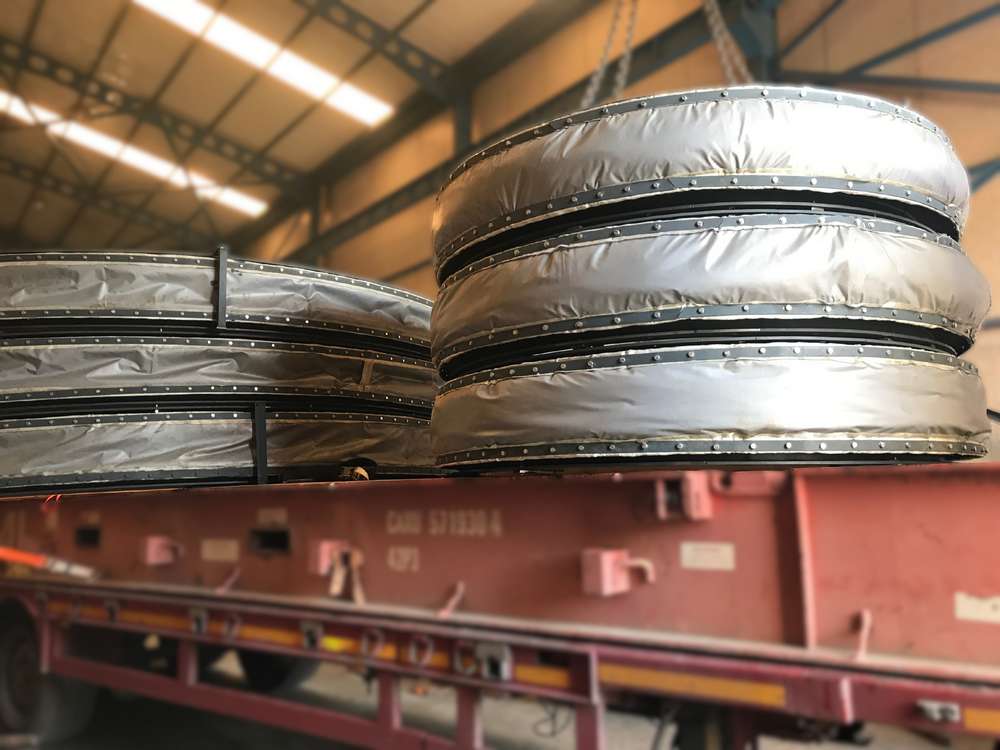

- Insulated or non-insulated units
- Integrated with steel constructions for structural support
The joints are engineered to connect seamlessly with duct flanges, boiler outlets, stack connections, and process lines. Standard fittings include flanges, clips, and pressure connections, ensuring easy installation and secure sealing.

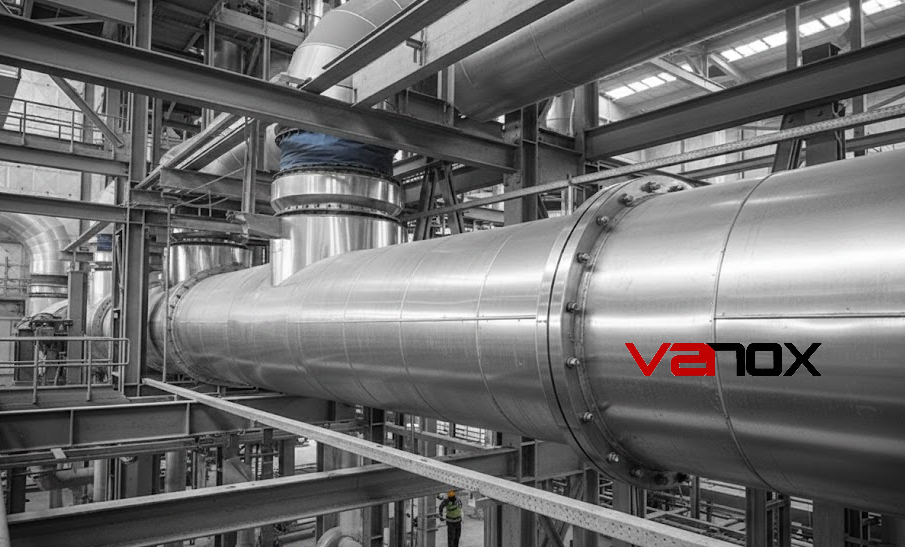

Applications of Vanox Fabric Expansion Joints
Vanox fabric expansion joints are widely used in high-temperature and chemically aggressive environments where traditional metal expansion joints may not be practical. Key applications include:
- Boiler inlets and outlets
- Flue gas duct systems
- Penetration seals in industrial buildings
- Process lines in chemical, pharmaceutical, and oil & gas industries
- Power plant ducting systems and fan isolation
- Metal production and cement processing plants
The multi-layered, chemically resistant construction allows Vanox fabric expansion joints to handle abrasive gases, high temperature fluctuations, and complex directional movements effectively.
Benefits of Vanox Fabric Expansion Joints
- Highly flexible: Compensates for axial, lateral, and angular movements with minimal reaction forces.
- Thermal and chemical resistance: Operates reliably under extreme temperatures and aggressive media.
- Reduced heat loss: Optional insulation layers minimize energy waste.
- Long service life: Durable materials resist abrasion, flutter, and mechanical stress.
- Custom engineered: Each joint is designed to fit specific operational parameters, ensuring optimal performance.
- Cost-effective: Lightweight fabric construction reduces installation effort and overall system load.
Technical Advantages
Vanox fabric expansion joints provide critical technical advantages for industrial piping systems:
- Absorption of complex multi-directional movements
- High resistance to vibration and pulsation
- Customizable insulation for high-temperature applications
- Reliable sealing against gas and particulate leakage
- Compatibility with various ducting and piping configurations
Quality Assurance and Standards
Vanox fabric expansion joints are manufactured under strict quality control standards and are accompanied by:
- EN 10204-2.2 certificates for material traceability
- Safety Data Sheets (SDS) for all materials used
- Design compliance for thermal, mechanical, and chemical specifications
This ensures that every Vanox fabric expansion joint meets international safety and performance standards, providing long-term reliability for critical industrial systems.
Conclusion
Vanox fabric expansion joints offer high-performance, technically advanced solutions for compensating thermal expansion, mechanical stress, and chemical exposure in industrial piping and duct systems. With multi-layer construction, customizable designs, and high resistance to heat, abrasion, and chemical attack, Vanox ensures that each joint delivers long-term durability and operational efficiency.
As a trusted manufacturer in Turkey, Vanox provides tailor-made fabric expansion joints for power plants, cement industries, chemical processing, pharmaceutical facilities, and more. By choosing Vanox, engineers and industrial operators gain access to reliable, precise, and high-quality expansion solutions that protect critical systems and improve overall performance.
